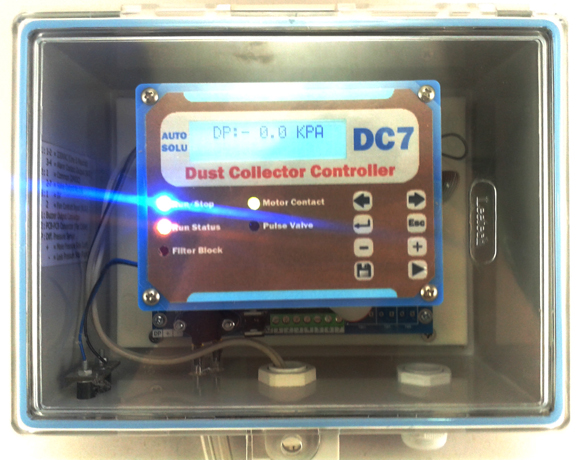

DC7 : ชุดคอนโทรลเครื่องกรองฝุ่นแบบพัลส์วาล์ว Dust Collector Controller (Pulse Valve Type)

คำอธิบาย : 3 working modes : Always, CheckP, และ CheckP+1pH
Stop delay to clean filter bags
Valve amount setting : 1-6 sets ( 12 sets expandable)
Valve grouping : 1-6 set / group
Differential pressure sensor (in & out filter bag) 0-10 kPa
Normal Toff & ToffSpeed
Pressure block alarm when filter bags are clogged
Alarm delay : 0-10 sec
Accumulated working hours : 0-99999 hr 59 min
Clean valve function
Test run function
Digital temperature sensor
Analog output 0-5Vdc for DP 0-10 kPa
